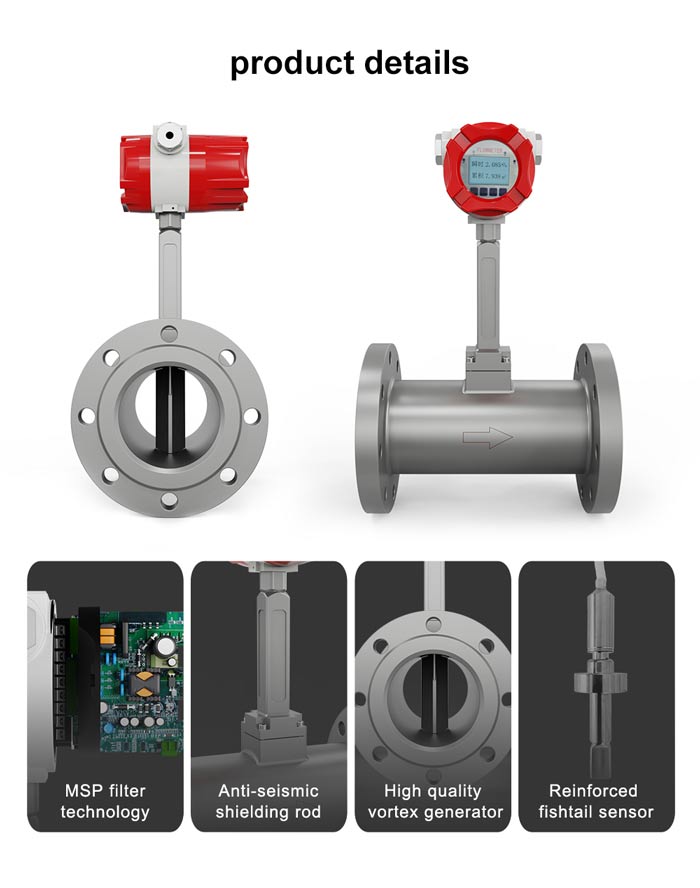

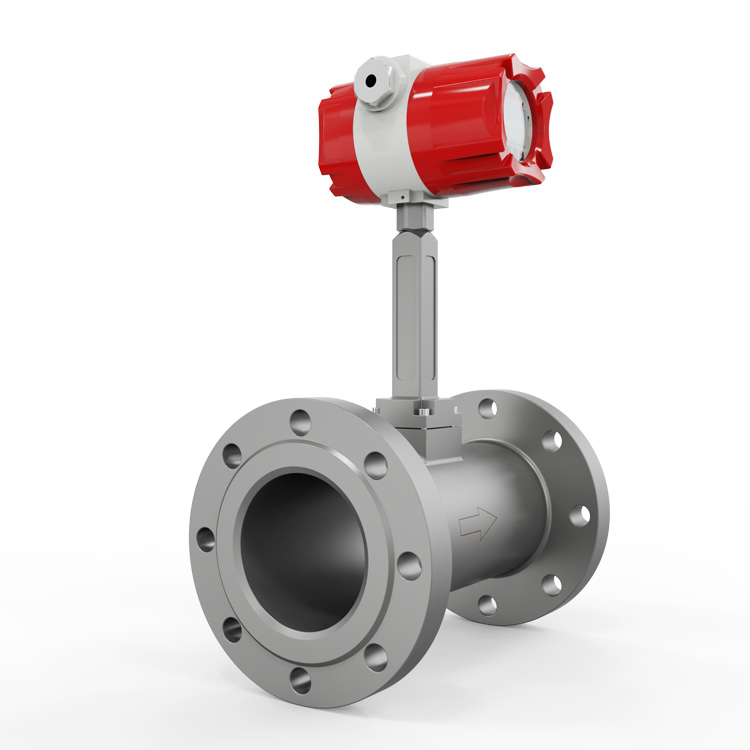

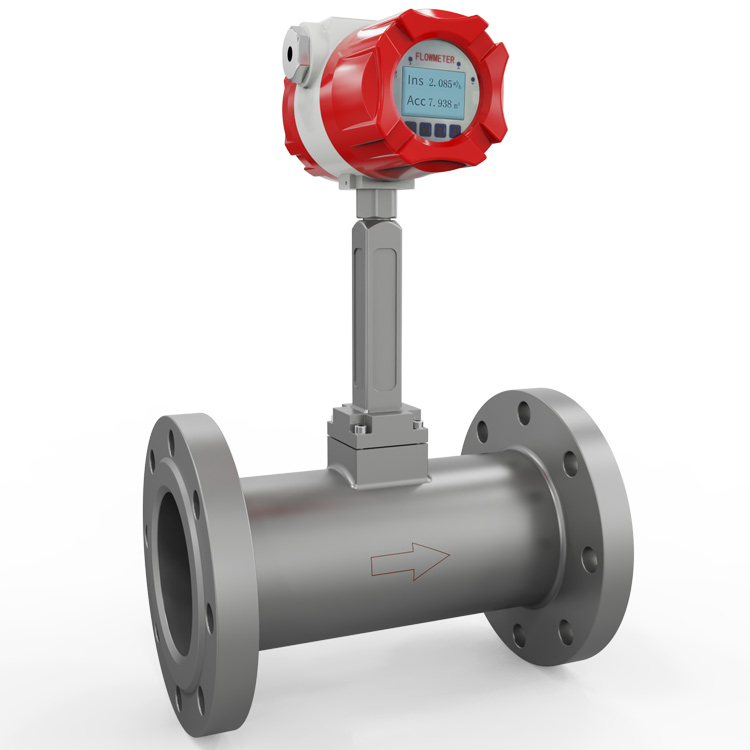

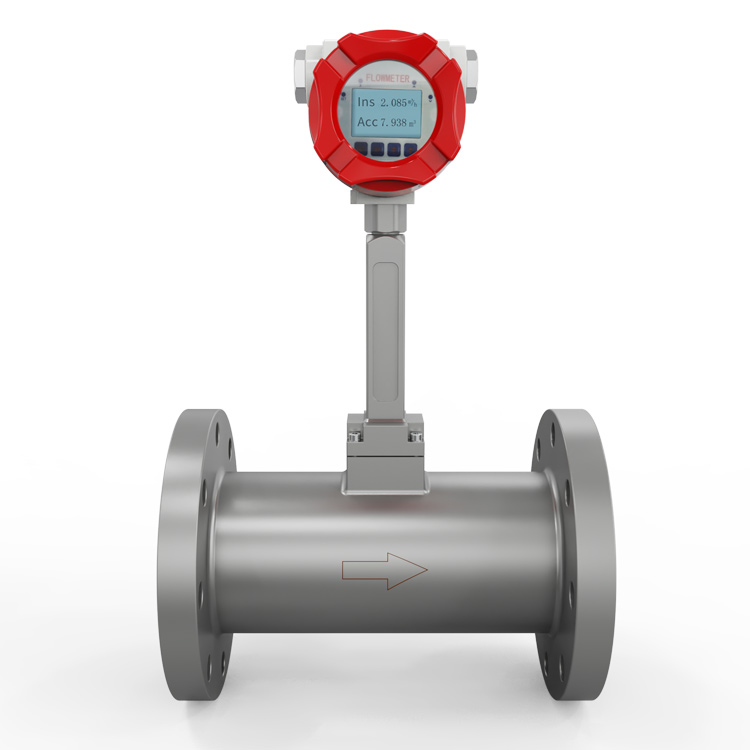

Large caliber plug-in vortex flowmeter

Large caliber insertion vortex flowmeter is a high-precision instrument widely used in industrial flow measurement. The following is a detailed introduction to it:

High accuracy: Generally, it can reach ± 1% R and ± 0.5% R, and high-precision models can reach ± 0.2% R;
Good repeatability: Short term repeatability can reach 0.05%~0.2%;
Wide range: The medium to large caliber can reach 1:20, and the small caliber is 1:10;
Suitable for high voltage measurement: There is no need to open holes on the instrument body, making it easy to make high-pressure instruments;
Output pulse frequency signal: Suitable for total quantity measurement and computer connection, with no zero drift and strong anti-interference ability.

الدردشة على الانترنت اتصل بنا

The large caliber plug-in turbine flowmeter is a measuring instrument with high reliability, low cost, and strong durability. It can meet the measurement of almost all liquid, غاز, and steam flow rates. This flowmeter has no moving parts, strong reliability, دقة عالية, and long service life. It can accurately measure the instantaneous flow rate and cumulative flow rate of liquids over a wide flow range, and is not affected by medium temperature, ضغط, اللزوجة, or composition.

Technical parameters of large caliber plug-in vortex flowmeter

Measurement medium	Gas, سائل, بخار
Connection method	Plug-in
Caliber specifications	DN10-DN2000
إشارة الإخراج	Pulse voltage output signal (high level, low level), pulse current remote transmission signal (4~20mA), إلخ.
Medium temperature	-40 ℃ to+350 ℃ (some models can reach+420 ℃, but attention should be paid to the type and material of the sensing head)
Pressure rating	PN1.0MPa to PN2.5MPa or higher (to be supplied by agreement), specific selection based on pipeline pressure
Protection grade	IP54, IP65
Ambient humidity	≤90%RH
Atmospheric pressure	86~106KPa
Power supply mode	DC24V power supply or 3.6V lithium battery power supply

Application scenarios of large caliber plug-in vortex flowmeter

1. Measurement of gas, سائل, and steam flow in large industrial pipelines.
2. Process control and measurement in industries such as petroleum, كيميائية, and pharmaceutical.
3. Flow monitoring in high vibration environments.
4. In situations where sensors require frequent replacement or maintenance.

Insertion turbine flowmeter is not suitable for use in situations with strong pulsating flow, nor is it suitable for measuring mixed phase flow. Moreover, it requires high cleanliness of the measured medium, and filters need to be installed as required. However, this also increases pressure loss. The flow characteristics of small-diameter plug-in turbine flow meters are severely affected by physical properties, making it difficult to improve their performance. So before using a plug-in turbine flowmeter, it is necessary to first have a clear understanding of the working environment and the advantages and disadvantages of the product, in order to avoid affecting normal operation.

Measuring flow velocity range

Liquid	0.5m/s to 7m/s
Gas	5m/s to 60m/s
بخار	7m/s to 70m/s

Output signal of large caliber plug-in vortex flowmeter

Pulse voltage output	The parameters of high level, low level, and pulse duty cycle depend on the specific model.
Pulse current remote transmission signal	Generally, it is a 4-20أماه current signal with a transmission distance of up to 1000m.

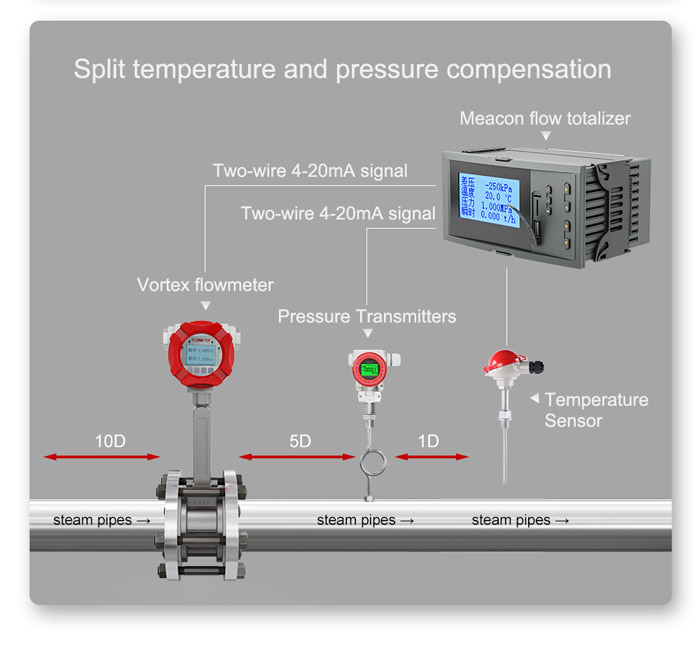

Some models also support on-site display of instantaneous flow, cumulative flow, and other parameters, and can perform compensation calculations for temperature, ضغط, and other parameters.
